Blackmagic Design ATEM 1M/E Constellation HD

10 Input Switcher

SKU: TBVIDSWATEM1MECONSTELHD

$1,390.00

Inc GST
RRP $1,569.00 SAVE $179.00
Share:

or 4 payments of $347.50 with Info

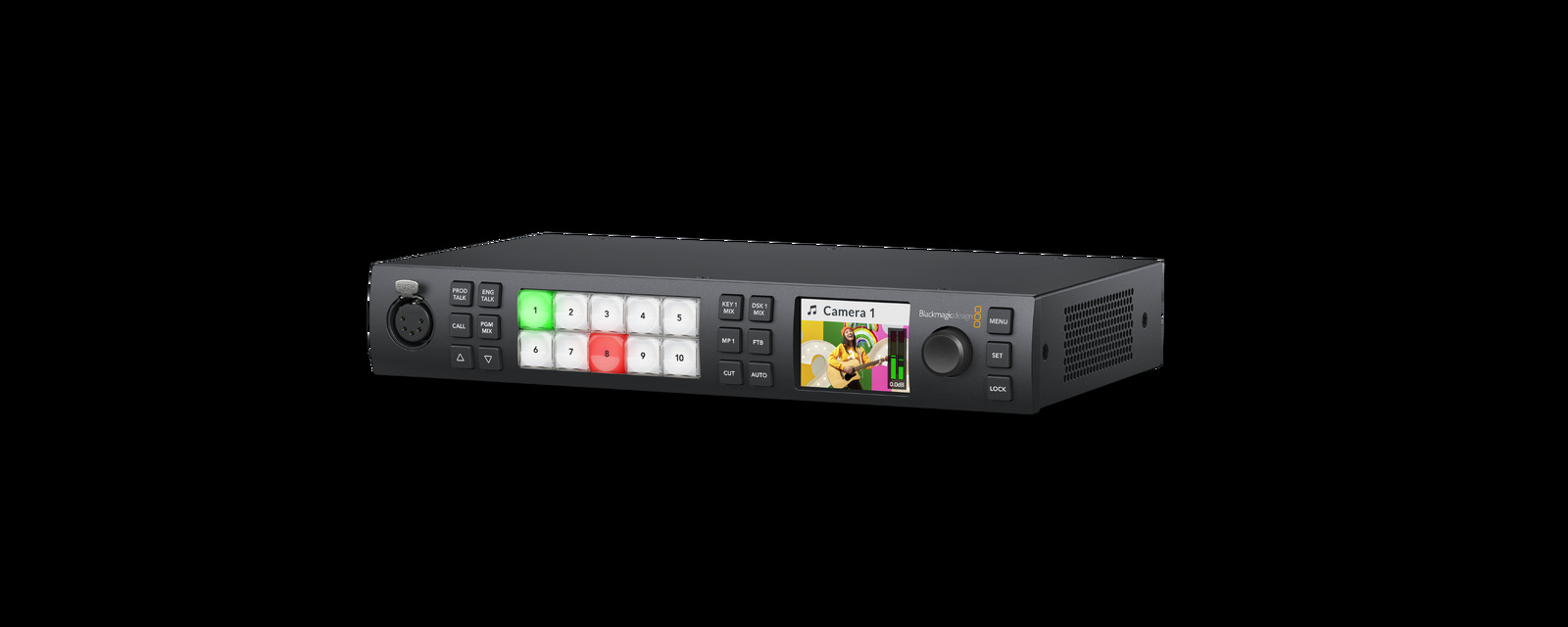

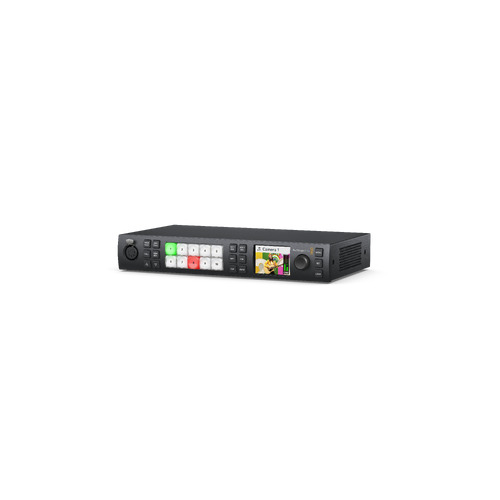

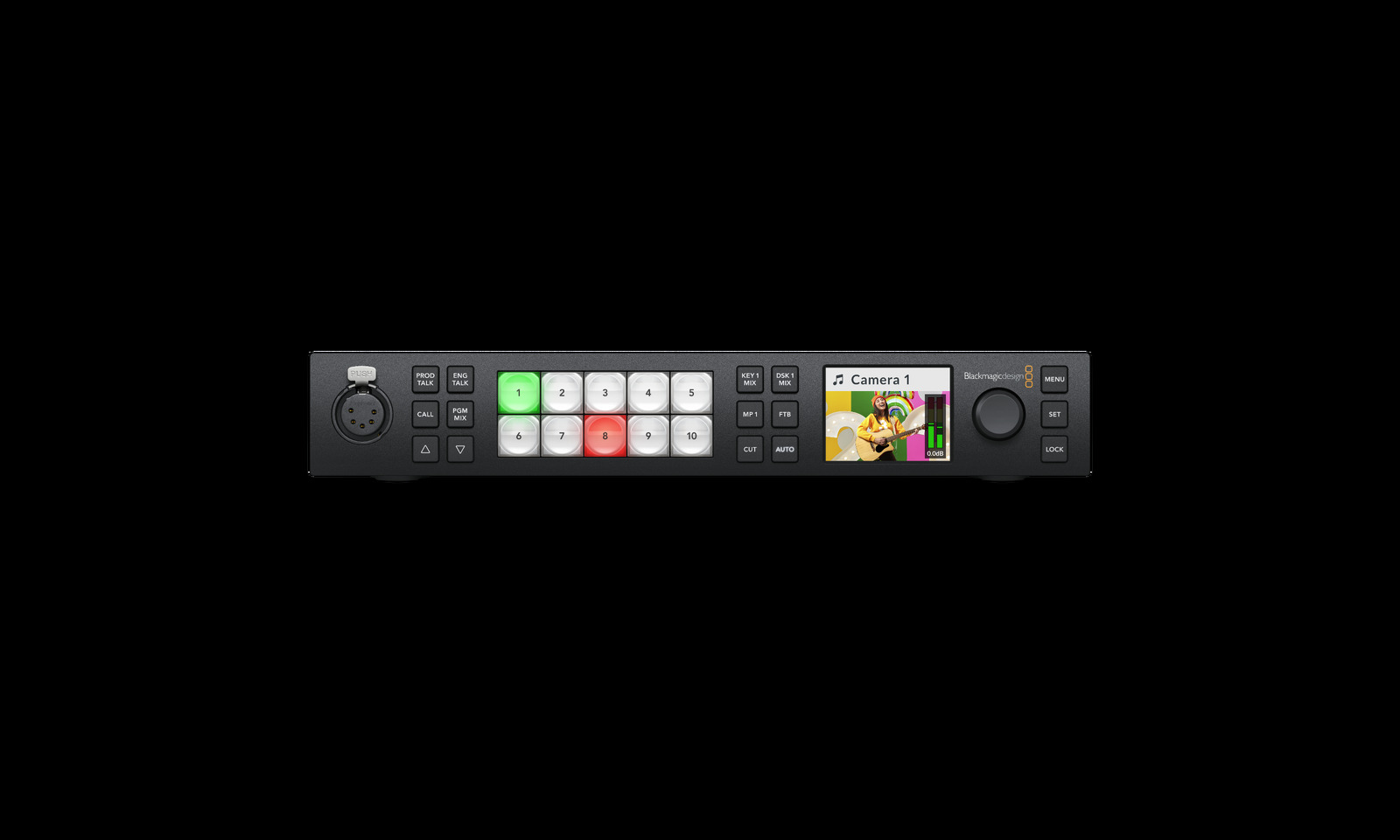

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

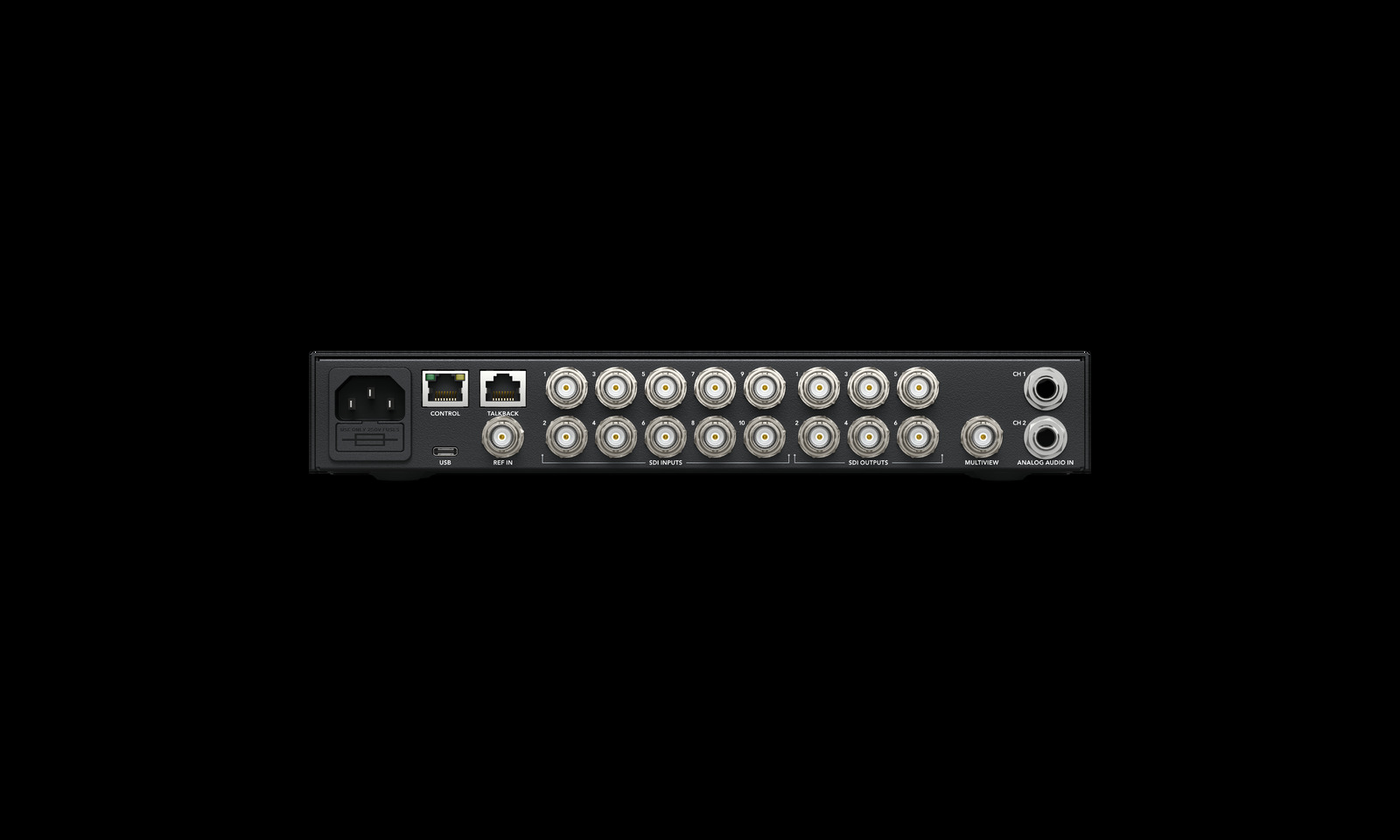

Connections

Total Video Inputs

10

Total Video Outputs

6

SDI Rates

1.5G, 3G

Total Audio Inputs

2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.

Total Audio Outputs

1 x 5 pin XLR Talkback.

SDI Audio Inputs

2 Ch embedded audio on all SDI inputs.

SDI Audio Outputs

2 Ch embedded audio on all SDI outputs.

Timecode Connections

None

Reference Input

Tri-Sync or Black Burst.

Video Input Re-Sync

On all 10 inputs.

Frame Rate and Format Converters

On all 10 inputs.

SDI Aux Outputs

Any of the 6 SDI outputs.

SDI Preview Outputs

Any of the 6 SDI outputs.

SDI Program Outputs

Any of the 6 SDI outputs.

Down Converted SDI Program Output

None

Webcam Output

1 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views

1 x 3G-SDI

Control Panel Connection

Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator

Yes

Talkback

RJ45 for 3rd party talkback systems.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet

Supports 10/100/1000 BASE-T.

Computer Interface

1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)

ATEM 1 M/E Constellation HD





ATEM 1M/E Constellation HD switcher is available to purchase. For more detailed information, visit the Blackmagic Design website or call one of our friendly team on 1300 976 684.



Blackmagic Design is an innovative Australian brand with operations in 7 countries and in-house manufacturing in Australia, Indonesia and Singapore. Demanding industry users seeking solid, reliable, long-lasting performance will not be disappointed with BMD equipment.



(TBVIDSWATEM1MECONSTELHD)

SKU TBVIDSWATEM1MECONSTELHD
Brand Blackmagic Design
Shipping Weight 2.0000kg
Shipping Width 0.400m
Shipping Height 0.120m
Shipping Length 0.250m
Shipping Cubic 0.012000000m3
