Blackmagic Design UltraStudio HD Mini

Capture and Playback




or 4 payments of $216.00 with Info

Capture and playback units are used by broadcast specialists, audio-visual professionals, AV integrators, video gaming competitions, theatre, live music event show operators, council chamber meetings, churches and live worship, digital media professionals, multimedia technology students, school productions and graduation ceremonies, TV and film production teams, touring live event producers and convention centre technical teams.

  • UltraStudio HD Mini is a versatile Thunderbolt 3 capture and playback solution
  • broadcast quality 8 and 10-bit video high dynamic capture

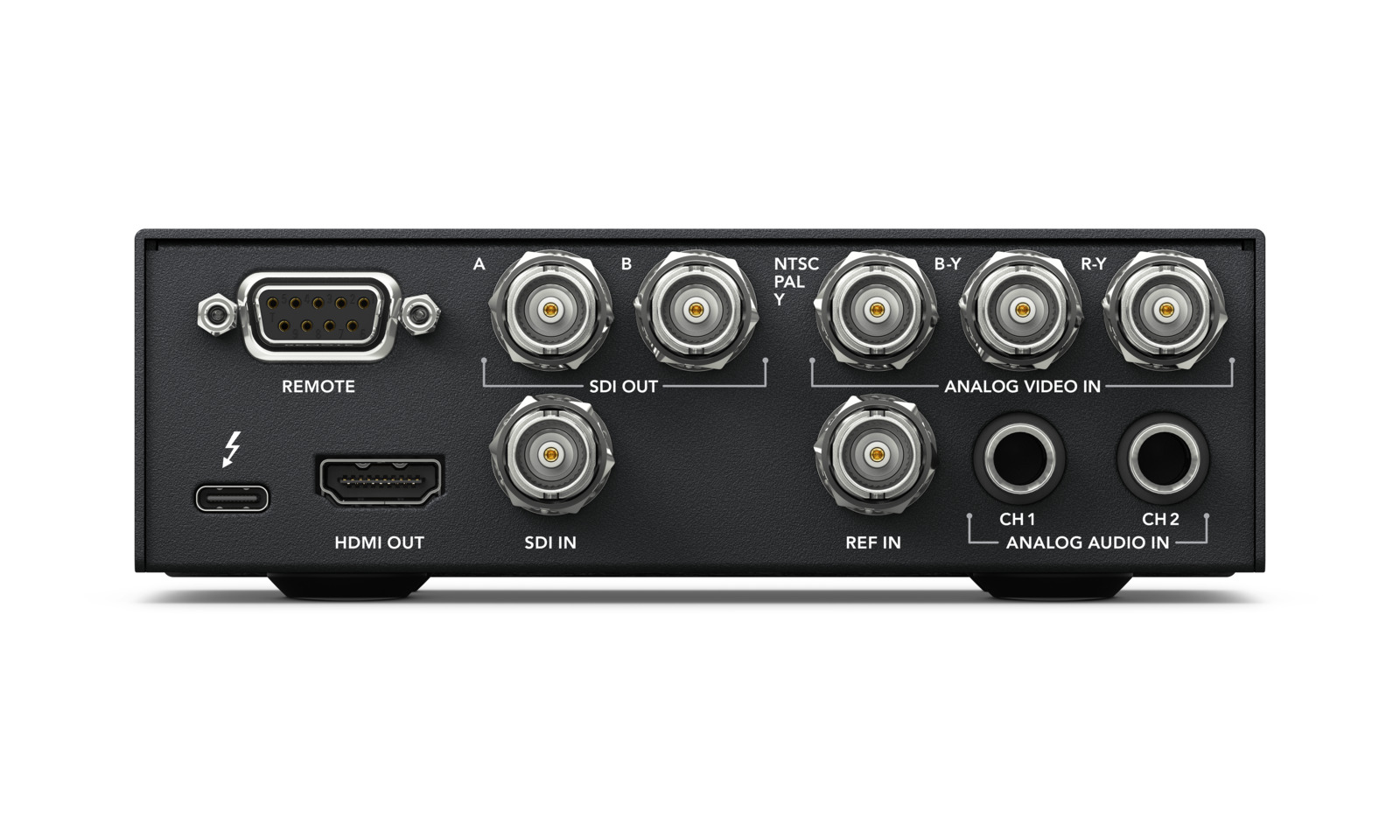

  • includes 1 x 3G-SDI input
  • analog YUV and composite NTSC/PAL video inputs using up to 3 x BNC connectors
  • 1 x BNC reference input
  • 2 x SDI video outputs as dual link supports fill and key
  • 1 x HDMI 1.4 output to a monitor
  • 1 x Thunderbolt 3 port
  • portable, easy to operate, compact package

UltraStudio HD Mini

  • supports 525i60 / 625i50 / 720p60 / 1080i60 / 1080p60 resolutions
  • interfaces will all leading software - Adobe, Avid, Cubase, Final Cut Pro X, Fusion and more
  • using RS422 connection broadcast decks can be controlled
  • two 1/4" jack analog audio inputs
  • 1/3 rack space wide
  • comes with SD card with software and user manual, DaVinci Resolve SD card
  • BMD offers a 36-month limited manufacturer's warranty


UltraStudio HD Mini is available to purchase. For more detailed information, visit the Blackmagic Design website or call one of our friendly team on 1300 976 684.

Blackmagic Design is an innovative Australian brand with operations in 7 countries and in-house manufacturing in Australia, Indonesia and Singapore. Demanding industry users seeking solid, reliable, long-lasting performance will not be disappointed with BMD equipment.



Brand Blackmagic Design
Shipping Weight 0.6100kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
Shipping Cubic 0.004800000m3
