Monitor recorders are used by broadcast and streaming specialists, audio-visual professionals, AV integrators, video gaming competitions, theatre, live music event show operators, council chamber meetings, churches and live worship, digital media professionals, multi-media technology students, school productions and graduation ceremonies, TV and film production teams, touring live event producers and convention centre technical teams.

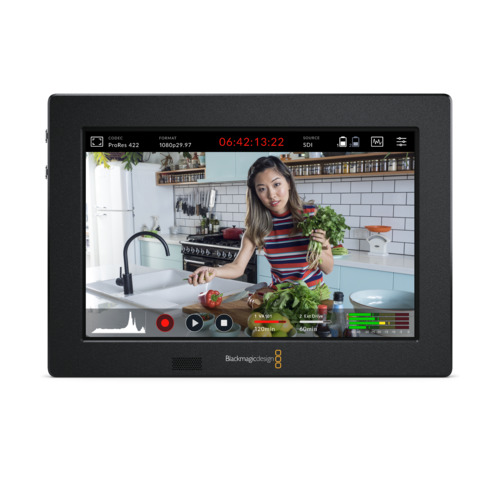

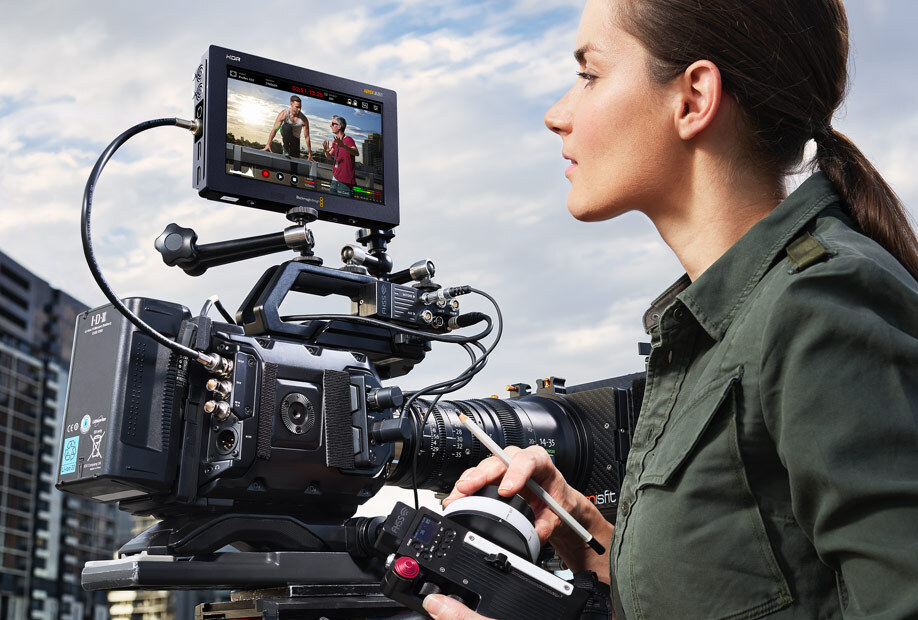

- Video Assist 7" 3G is a portable monitor, professional recorder, scope and high-quality viewfinder, a 4-in-one solution

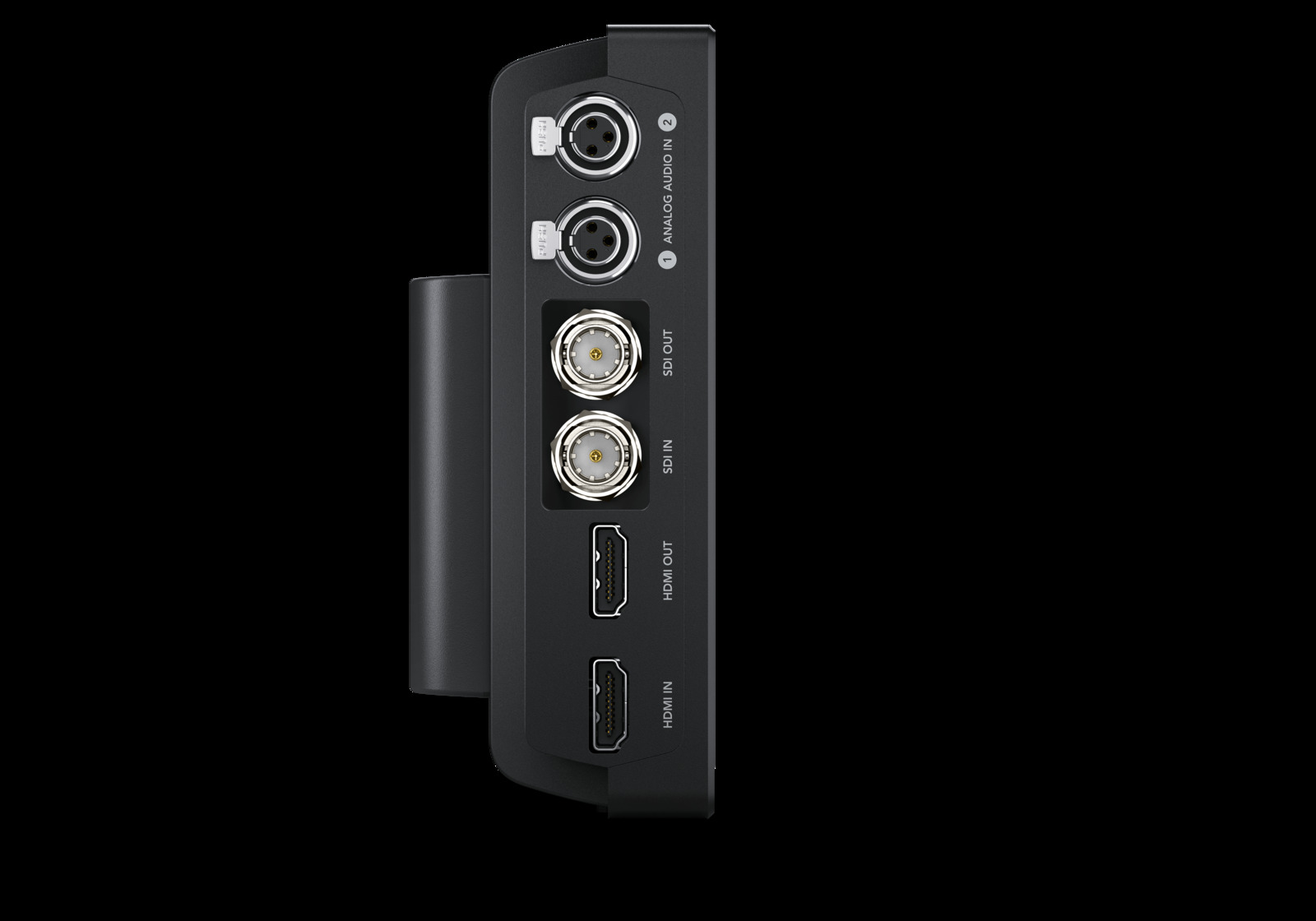

- 1 x SDI and 1 x HDMI inputs for sources like camera's, gaming consoles, notebooks and more
- SDI auto-switching will automatically detect SD, HD and 3G-SDI
- HDMI input is unable to process copy-protected (HDCP) content
- 1 x SDI and 1 x HDMI outputs to switchers, streaming, projectors and more
- rugged design with mounting points, compact and easy to operate

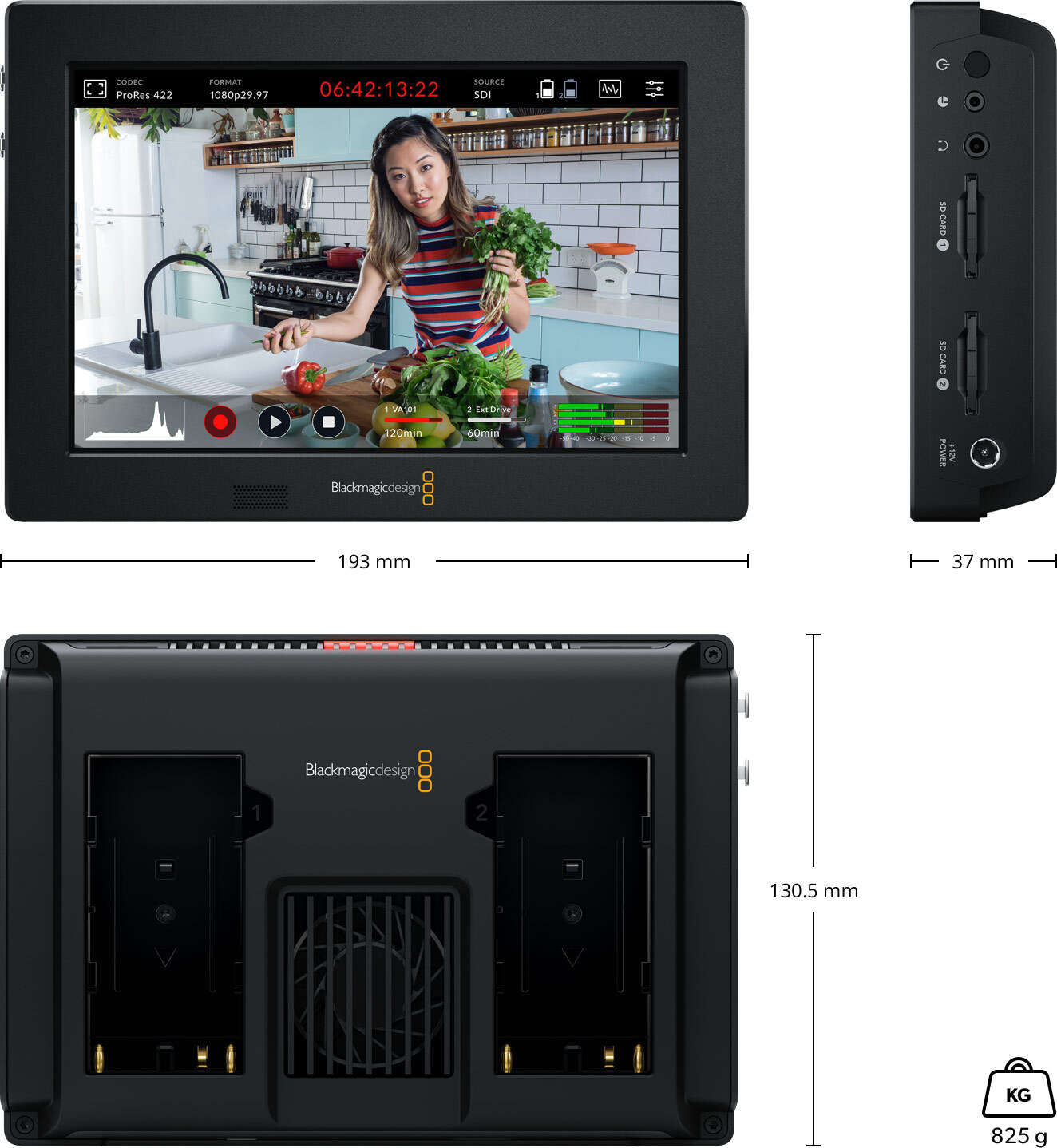

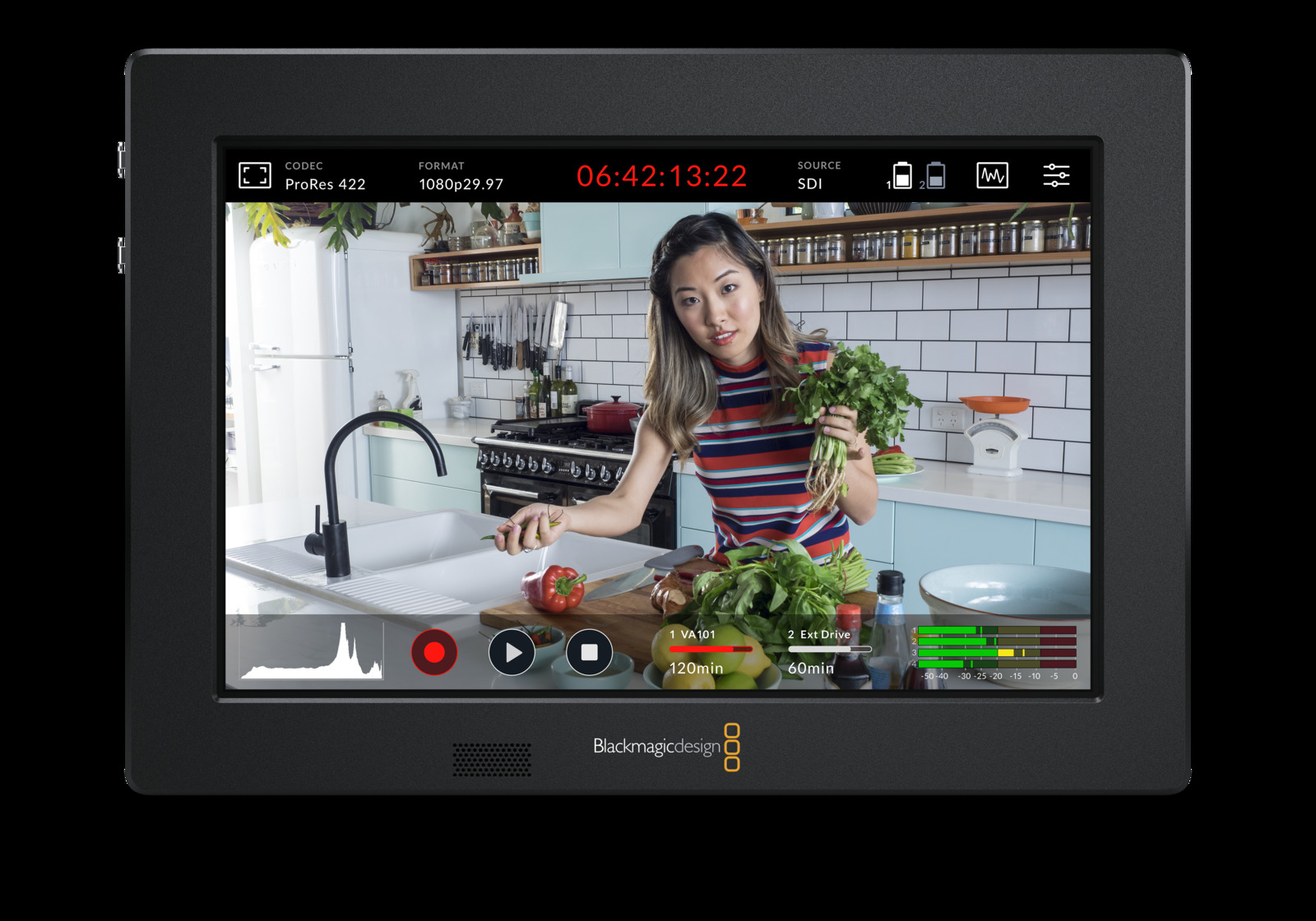

- integrated capacitive, 310 nits bright, 7-inch 1920 x 1200 touchscreen LCD with onscreen controls for settings and menus
- 4 scopes include waveform, RGB parade, vector and histogram
- scopes are able to be overlayed, PIP'ed in and opacity controlled
- supports 525i60 / 625i50 / 720p60 / 1080i60 / 1080p60 resolutions

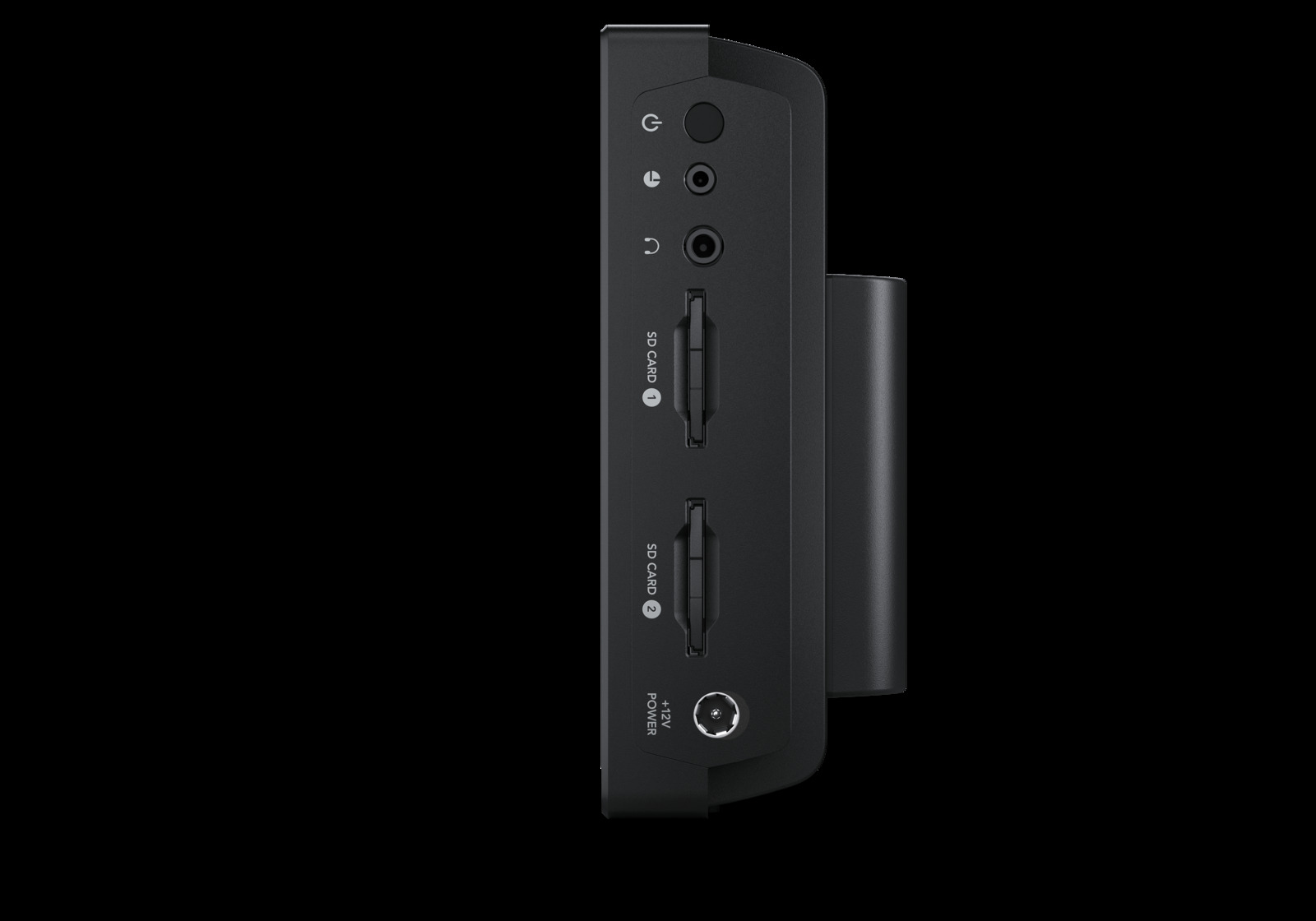

- for regular uninterrupted records, there are 2 x SD card slots for SDHC/SDXC UHS-I (80-170MB/s) and faster SDHC/SDXC UHS-II (300 MB/s) cards
- for long recordings use the USB-C port to output to higher capacity and faster external SSD
- handy USB-C connector for output to a streaming computer
- ability to add better quality record codecs to the input content
- Blackmagic OS software updates, initial setup, utility software control using the USB-C port
- 2 x analog audio inputs with balanced mini XLR connectors
- 1 x 3.5mm headphone jack and a handy built-in mono speaker for monitoring

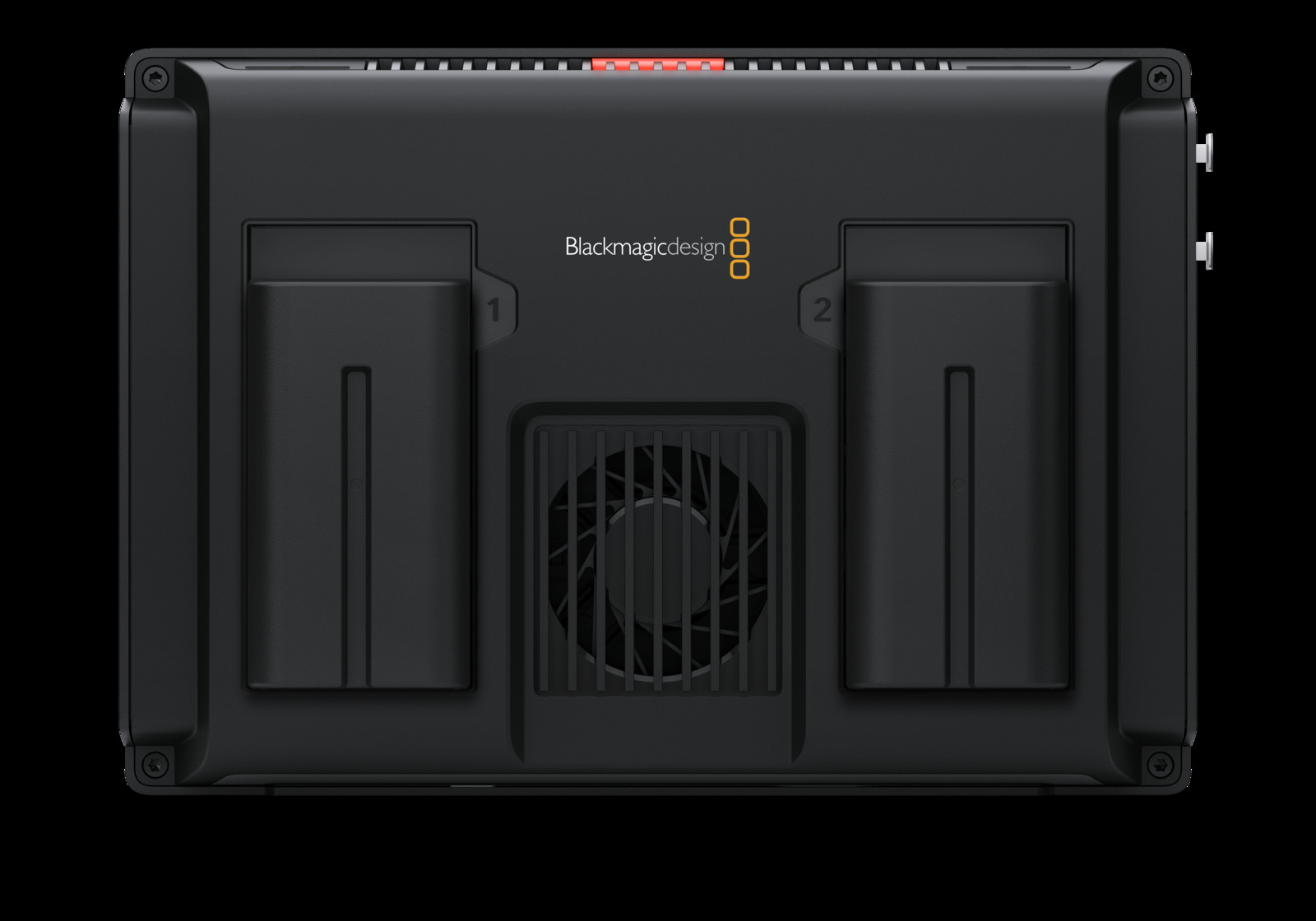

- 2 x L-series battery slots for long uninterrupted records (batteries not included)
- includes +12 volt DC power supply pack with international power adapters
- BMD offers a 12-month limited manufacturer's warranty
Video Assist 7" 3G is available to purchase. For more detailed information, visit the Blackmagic Design website or call one of our friendly team on 1300 976 684.
Blackmagic Design is an innovative Australian brand with operations in 7 countries and in-house manufacturing in Australia, Indonesia and Singapore. Demanding industry users seeking solid, reliable, long-lasting performance will not be disappointed with BMD equipment.
